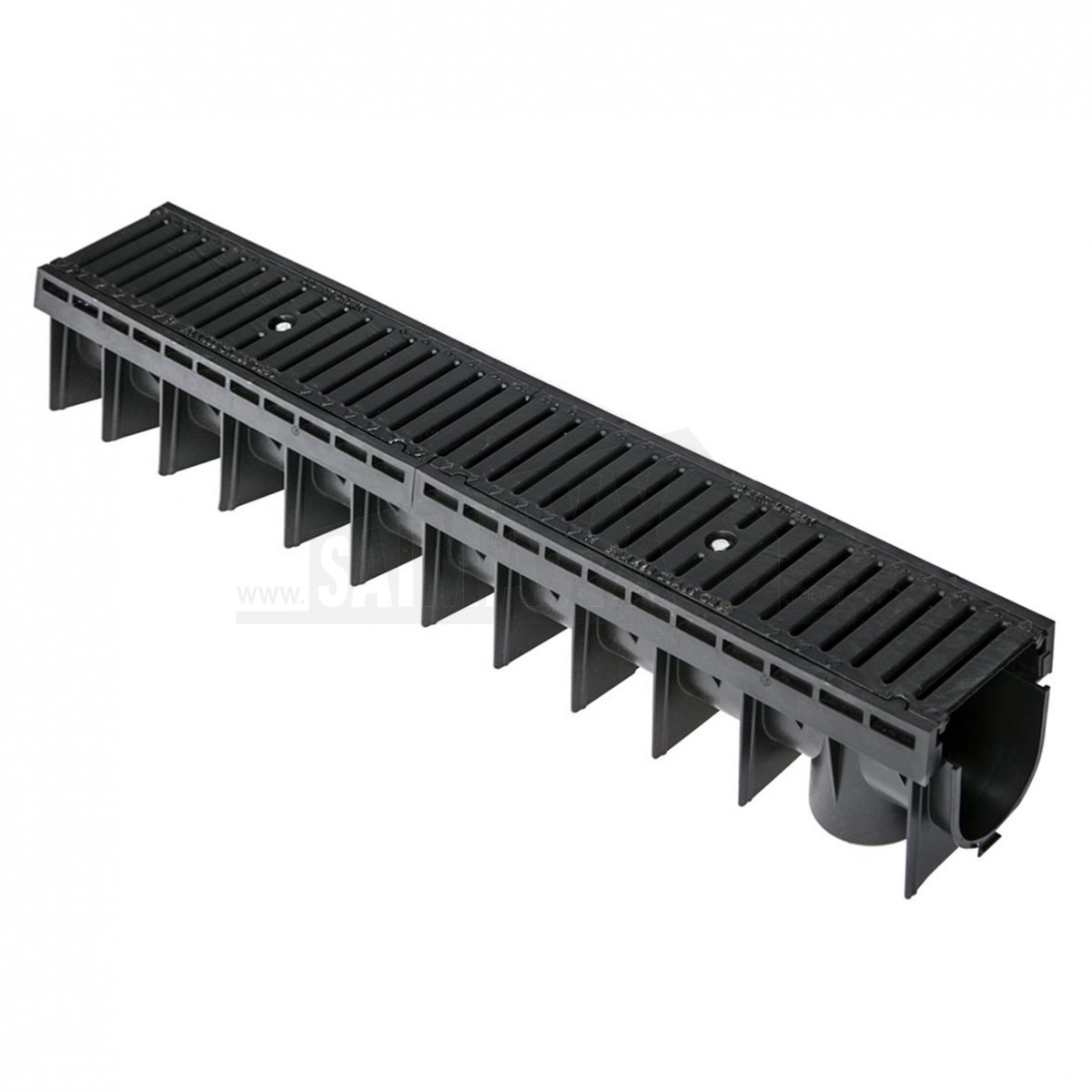

A durable drainage system designed for areas with moderate traffic, including car parks, forecourts, and private roads. It features a ductile iron narrow-slot heel-guard grating, ensuring both safety and robustness.

Internal Dimensions: 1000mm (L) x 100mm (W) x 128mm (D)
External Dimensions: 1000mm (L) x 147mm (W) x 158mm (D)
Water Way Area: 180cm²

BENEFITS:

• Load Class C250 – Certified to support loads up to 25 tonnes, ideal for driveways and commercial areas.
• Lightweight polypropylene channel, with ductile iron grating.
• Heat resistant (Ideal for tarmac edging).
• Locking bar grating retention – Grating is secured using a locking bar that runs across the channel, fastened in place with bolts.
• Narrow-slot “heel-guard” ductile iron grating.
• Accreditations: UKCA Marked, BS EN 1433:2002 Type M, CE Marked.
