DESCRIPTION

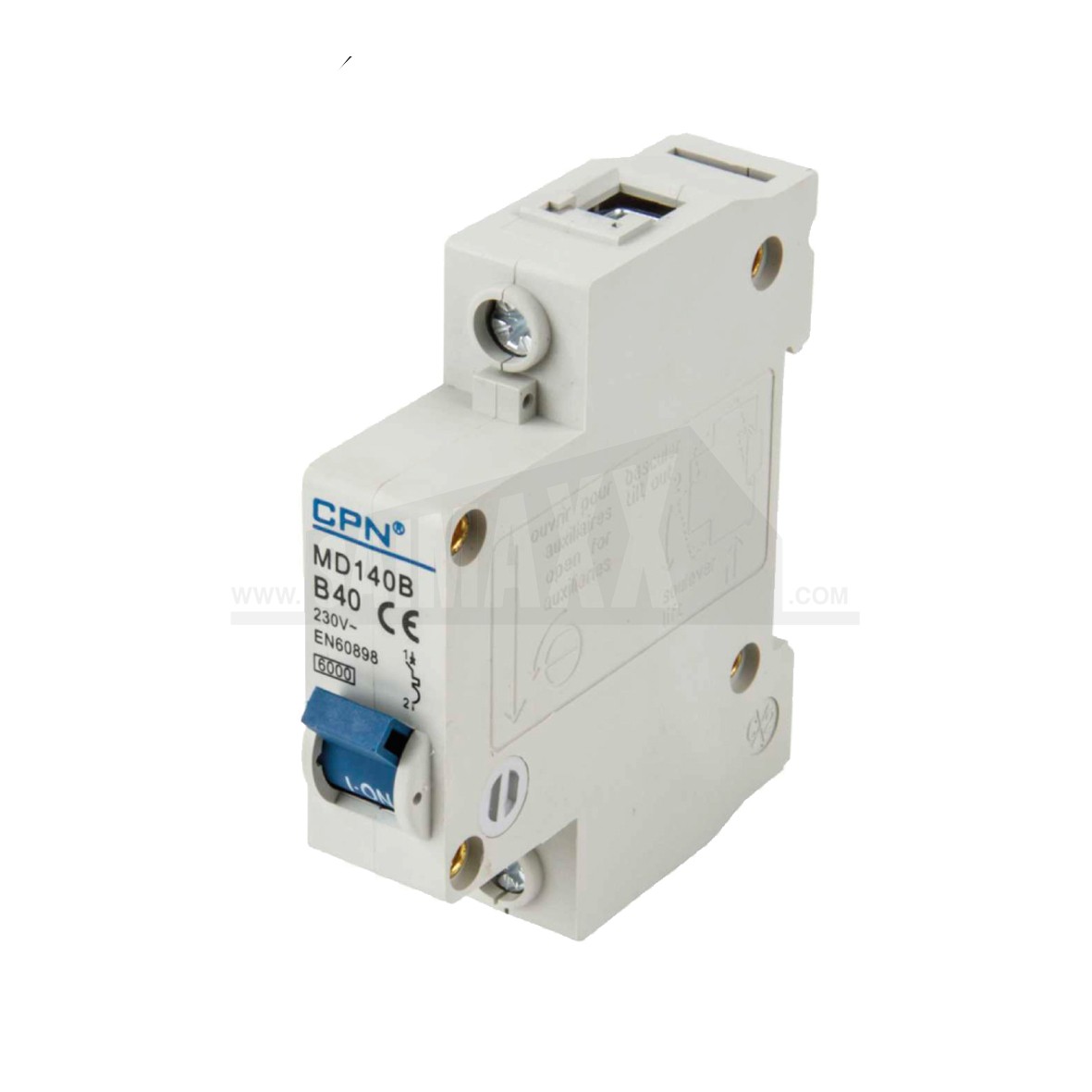

CPN MD range of SINGLE POLE breakers are suitable for use in all CPN consumer units and mini enclosures. Please note these breakers cannot be used in 3Phase distribution boards.

Can be used as an infrequent on/off switch and can be used for standalone protection.

This MD range of breakers have a 6kA short circuit breaking capacity (interrupt capacity) – please note that 50A & 63A breakers are rated at 4.5kA. .

Suitable for 35mm DIN rail.

FEATURES AND BENEFITS

• Single Pole (1P)
• 1 module width
• B curve
• Protects against overload and short circuit currents
• Contact position indicator shows on/off positions (this is the blue switch)
• Voltage range: 230-240V AC at 50hZ
• 5 year manufacturers warranty
