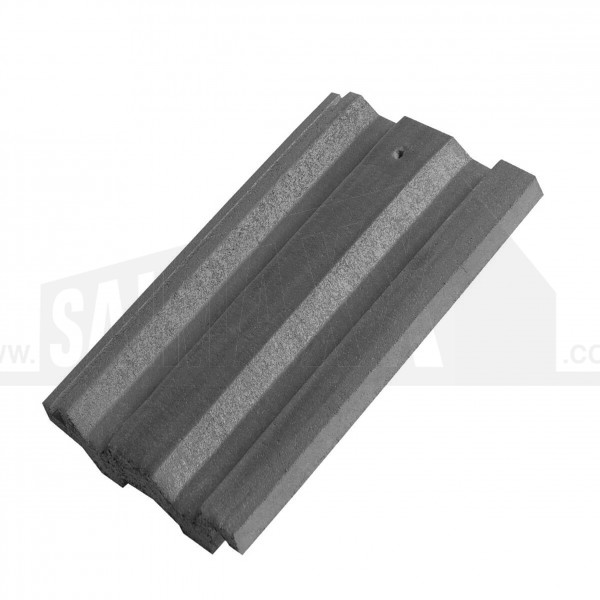

Marley Ludlow Plus interlocking roof tiles are a small format tile with a timeless and functional design that is ideal for refurbishment applications. The small size means that it is easier to handle on site and reduces potential wastage. This tile has a smooth modern finish.

Tile Dimensions: 387 x 229mm

Tile Thickness: 25mm

Minimum Pitch: 25°

Maximum Pitch: 90°

Coverage: 15.7 tiles per m2 at 75mm headlap

Battens (Recommended): 25x38mm OR 25x50mm

Batten Requirements: 3.2 linear metres per m2 at 75mm headlap

Weight: 47kg per m2 at 75mm headlap

Note: Please allow a 5% tolerance for breakages when purchasing this product
