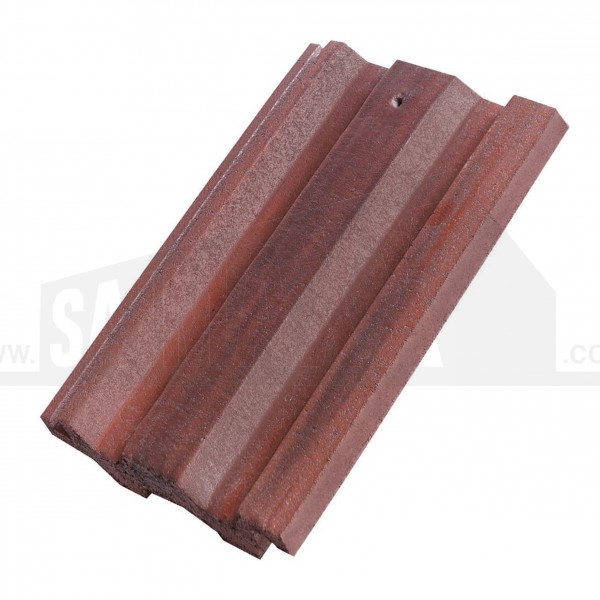

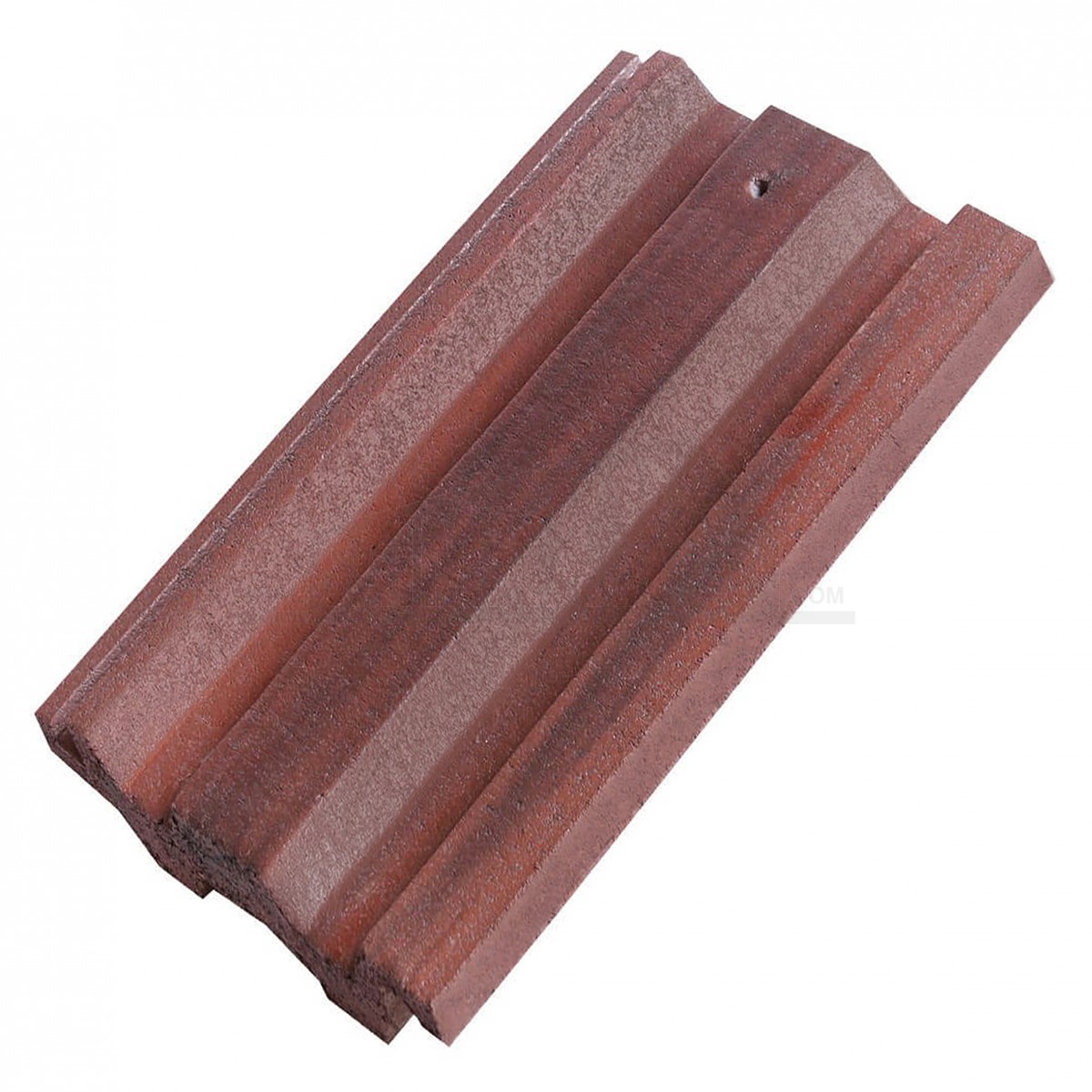

The Marley Ludlow Plus is a small-format interlocking roof tile with a clean, practical design suited to both refurbishment and new-build projects. Its compact size makes it easier to handle during installation, particularly on tighter or more complex roof layouts. The smooth red finish provides a traditional appearance while maintaining compatibility with a wide range of architectural styles.

FEATURES & BENEFITS

• Small-format tile designed for improved handling and reduced on-site waste.

• Smooth red finish offers a clean, traditional appearance.

• Interlocking design simplifies installation and improves weather resistance.

• Suitable for both refurbishment and new roofing projects.

• Similar to the Redland 49, Forticrete V2, and Sandtoft Standard Pattern ranges

• Manufactured by Marley for long-term reliability and performance.

TECHNICAL INFORMATION

• Minimum pitch: 22.5° (with 100mm headlap) or 25° (with 75mm headlap).

• Maximum pitch: 90°.

• Coverage: Approx. 17.1 tiles/m² (100mm headlap) or 15.7 tiles/m² (75mm headlap).

• Battens: 25x38mm or 25x50mm.

• Batten requirement: 3.5 linear metres/m² (100mm headlap) or 3.2 linear metres/m² (75mm headlap).

• Tile dimensions: 387mm x 229mm.

• Tile thickness: 25mm.

• Weight: Approx. 47kg/m² (100mm headlap) or 51kg/m² (75mm headlap). Allow 5% extra for breakages.
