DESCRIPTION
Astro X Series CE Pipe Collars are designed and tested to seal service penetration apertures containing plastic and metallic pipes, pipes with insulation or cables, using thermoplastic composites based on graphite intumescent technology.
Developed to provide a high volume expansion and pressure seal during a fire. The X Series CE Collar offers EI120 and EI240 tested to EN1366-3, the maximum diameter being 250mm, the ultra thin design of Astro X Series collar shell gives a depth of 30mm and 40mm ensuring that they can be installed into the tightest of locations.
Astro X Series Pipe Collar can be installed on flexible wall, rigid wall, rigid floor constructions and in batt seals.
They are compatible with polypropylene (pp),polyethylene (PE) and Polyvinylchloride (PVC) pipes. X Series Collar is tested with end capping configurations that cover U/U, C/U, U/C and C/C pipes.
Astro X Series CE Pipe Collar is used around combustible pipes to form a penetration seal used to reinstate the fire resistance performance of wall and floor constructions, where they have been provided with apertures for the penetration of combustible pipe services.

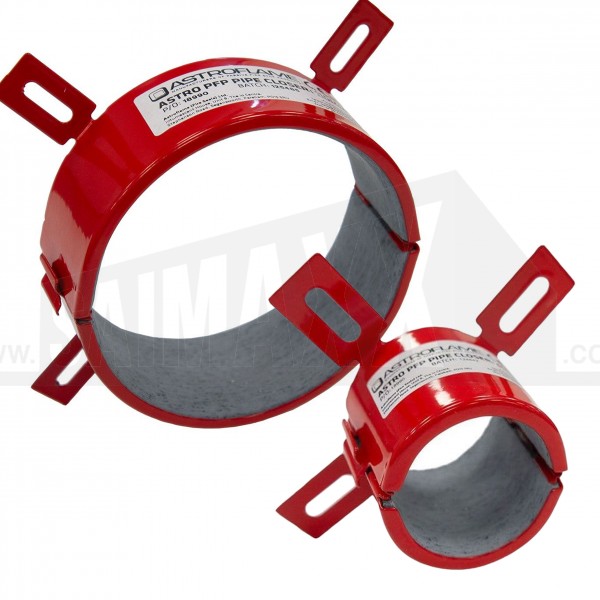

Astro X Series CE Pipe Collar include an intumescent component incorporated into a mild steel case to close any gaps and joints and provide a closure of combusting pipes when heated and to prevent the passage of fire.

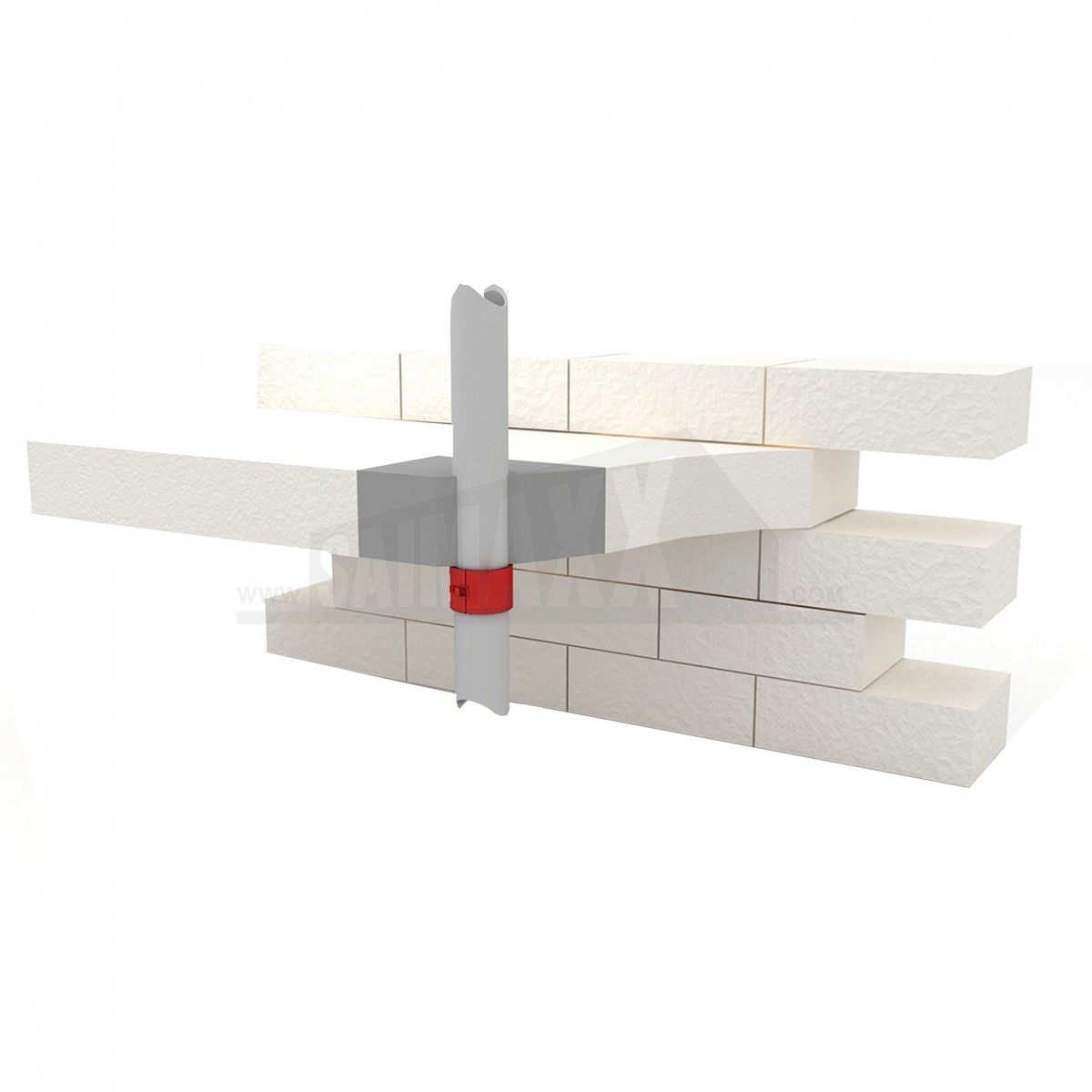

Astro X Series CE Pipe Collars are supplied in assembled form, without fixings. The collar is wrapped around the pipe at the soffit or both faces of walls, depending on application.
